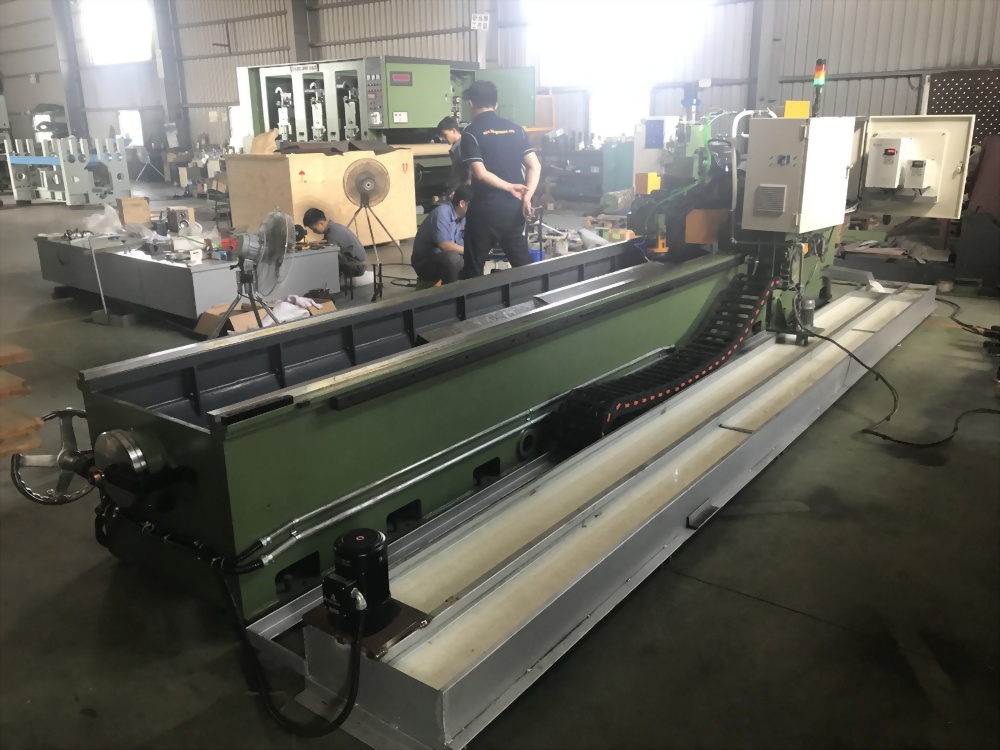

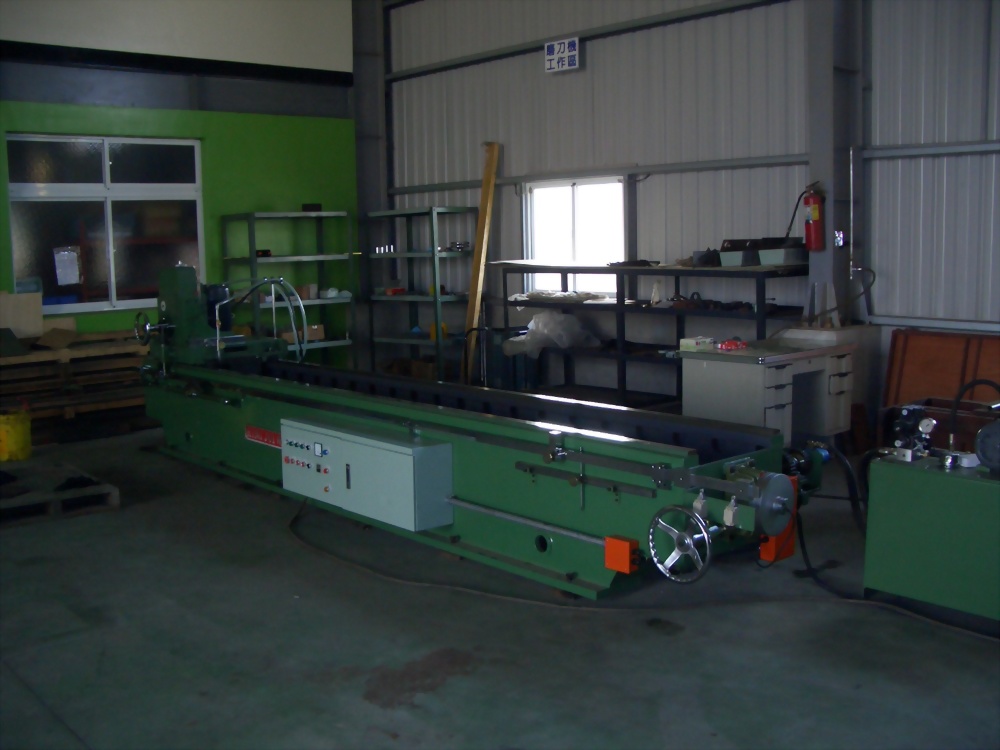

磨刀机
Max. Workable Size :3000 mm
Required Power 11Kw
High grinding accuracy provides the best quality grinding.
Front mounted control panel provides operational convenience and safety.

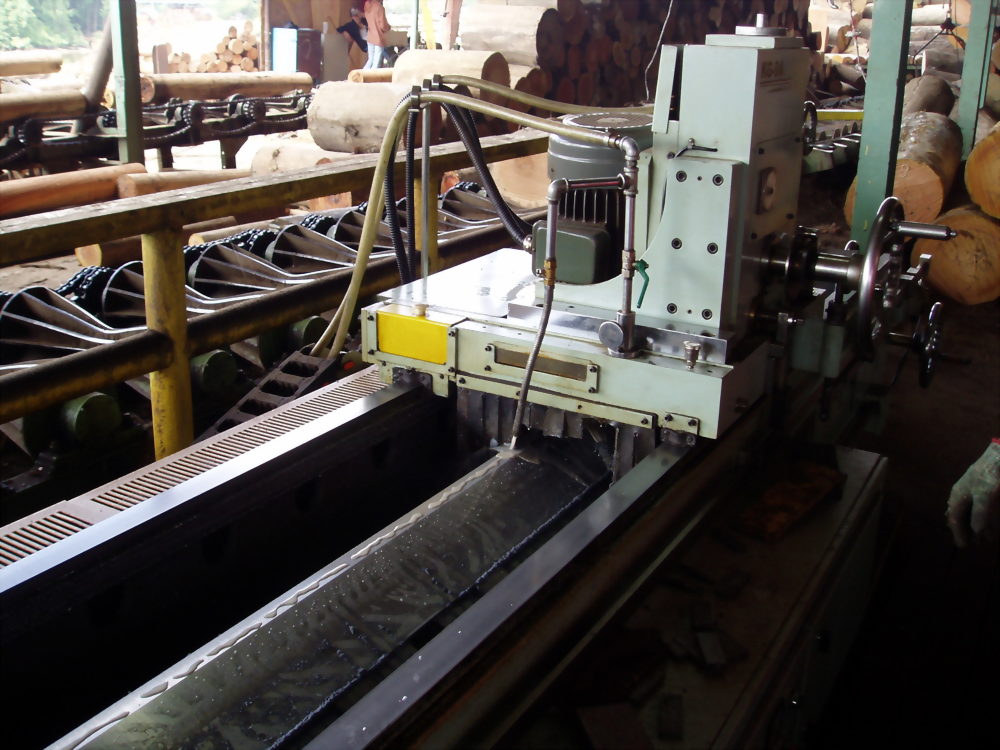

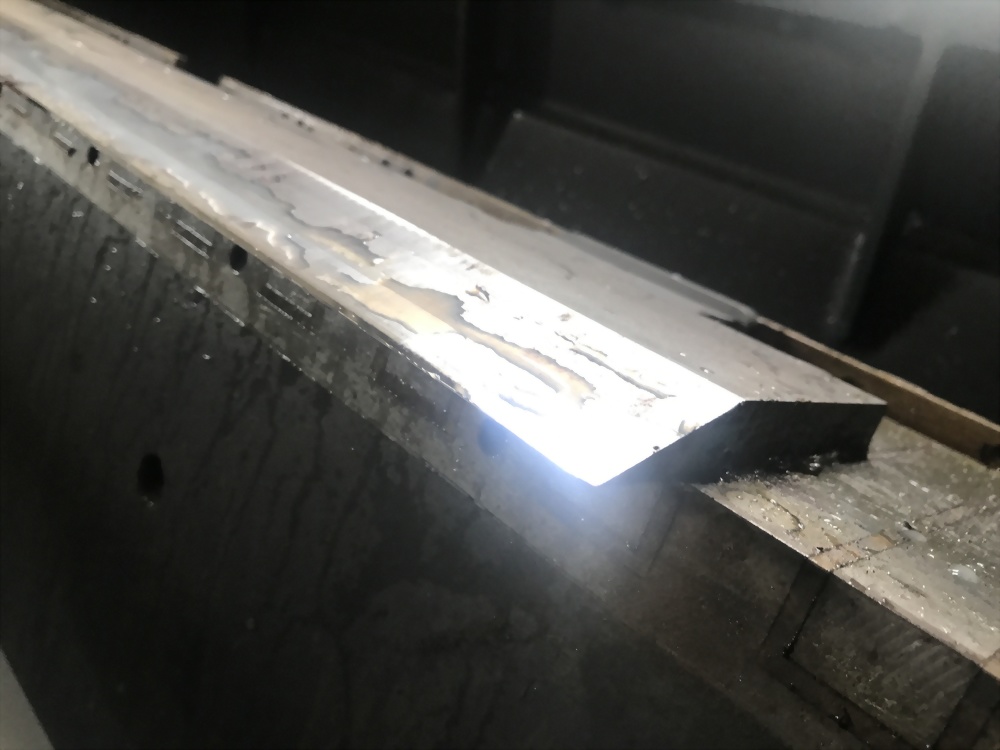

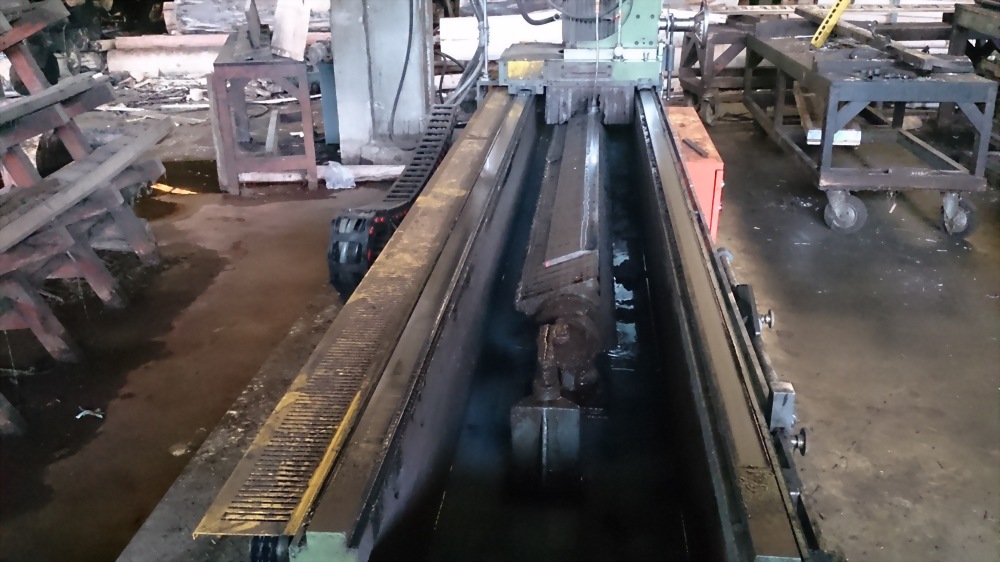

The machine employs magnetic chuck to fix the knife firmly, allowing for quick loading and unloading of knife without deformation on the knife.
|
Specifications |
KG-9A |
|
|
Max. Knife length |
3000 mm |
|
|
Magnetic chuck swiveling angle |
90°~~0°~~90° |
|
|
Range of Carriage speeds |
7~16 m/min |
|
|
Max. Allowable Height of Work piece |
110 mm |
|
|
Grinding wheel speed |
1740 rpm(60Hz) rpm |
1435 rpm(50Hz) |
|
Grinding wheel sizes |
255x205x125 mm |
|
|
Grinding wheel tilting angle |
0° ~~ +7° |
|
|
Grinding Wheel Motor |
7.5Kw x 4p |
|
|
Hydraulic Pump Motor |
1.5Kw x 4p |
|
|
Coolant Pump Motor |
0.18Kw x 4p |
|
|
Custom machine specifications are available. |
||
