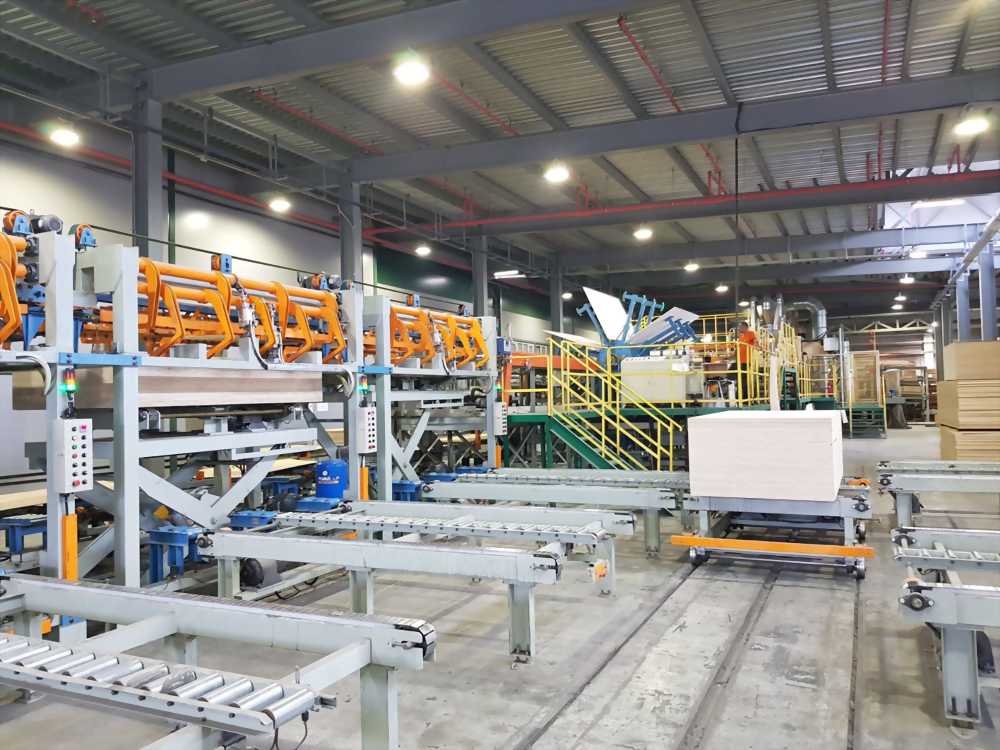

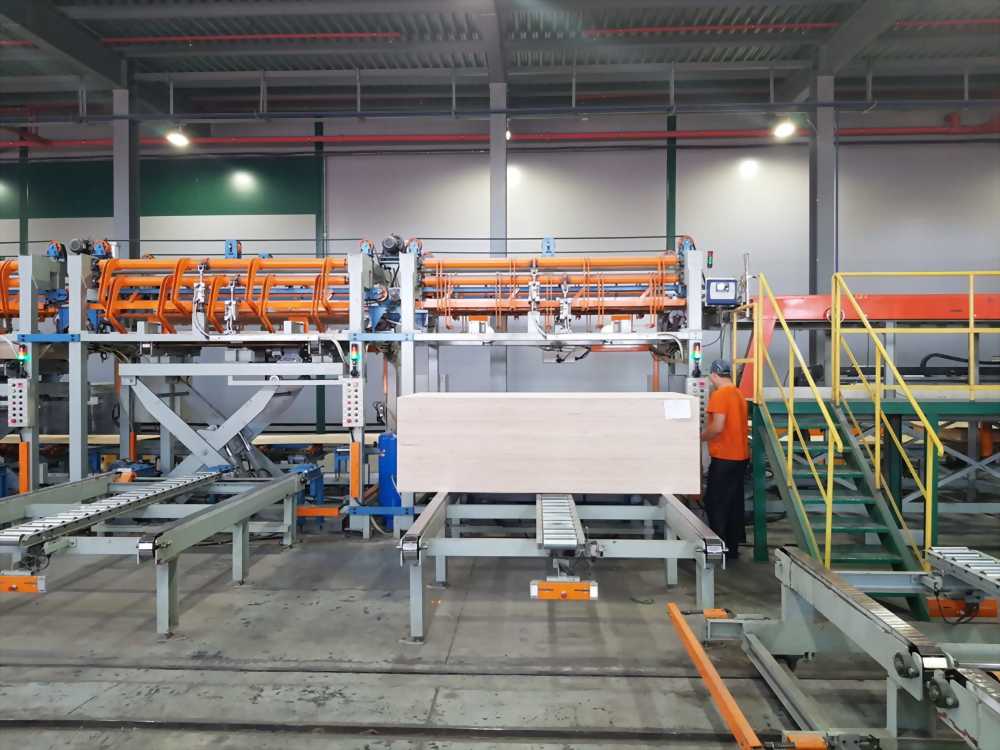

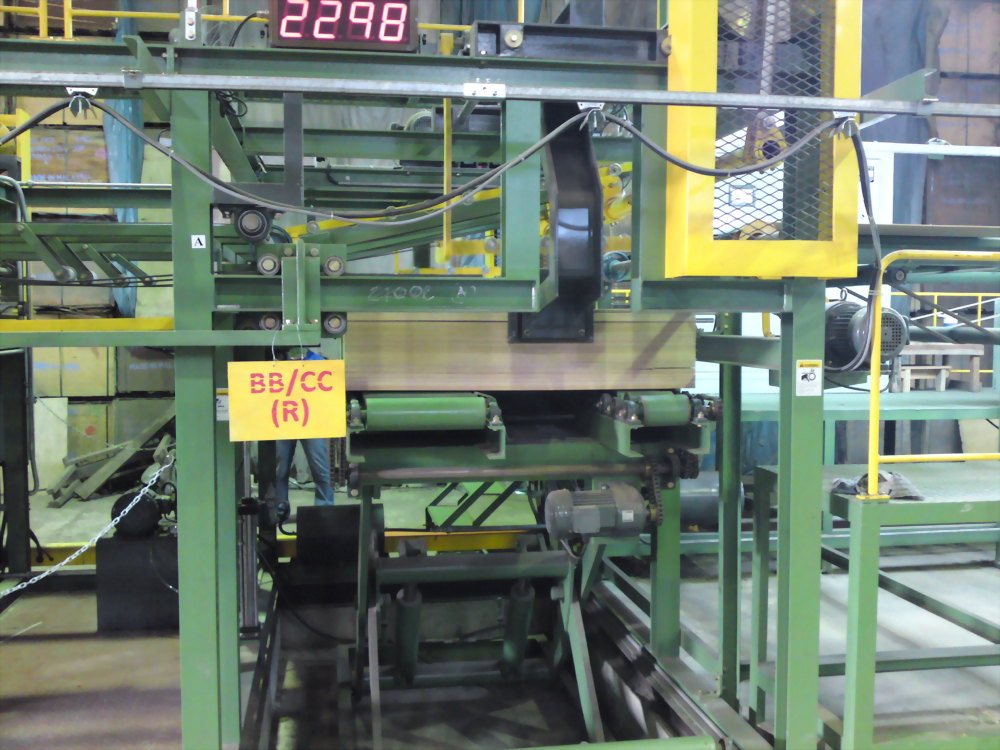

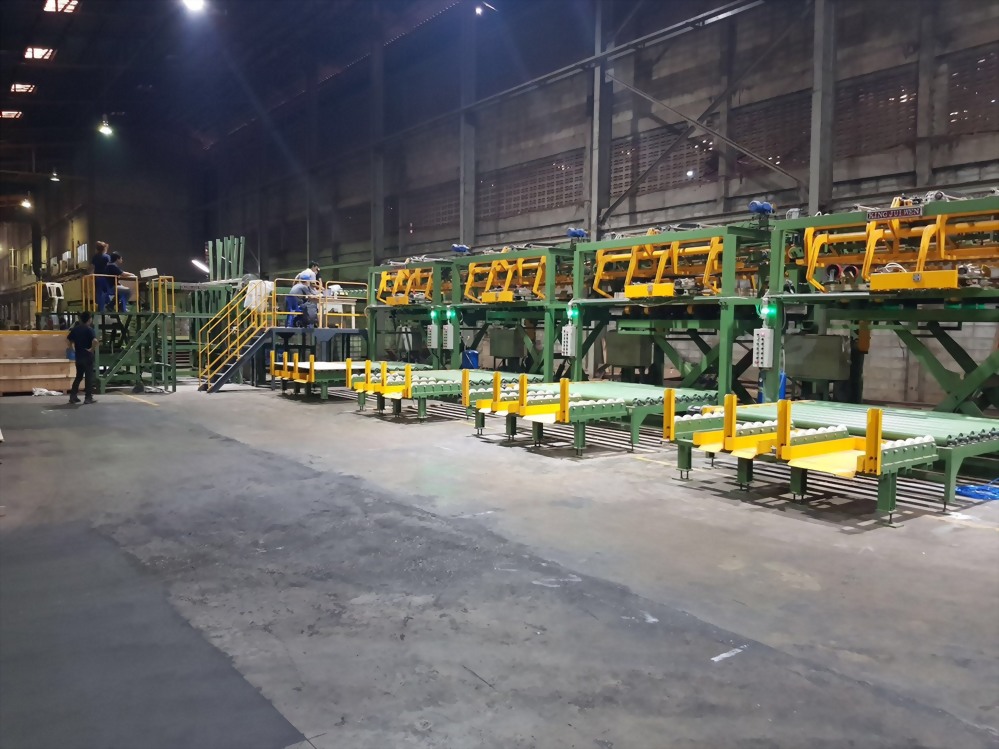

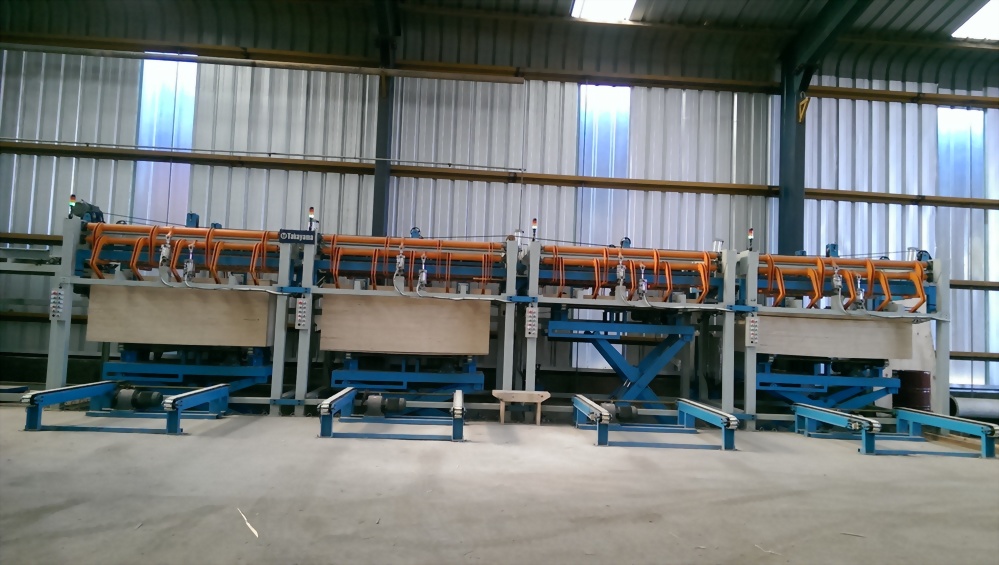

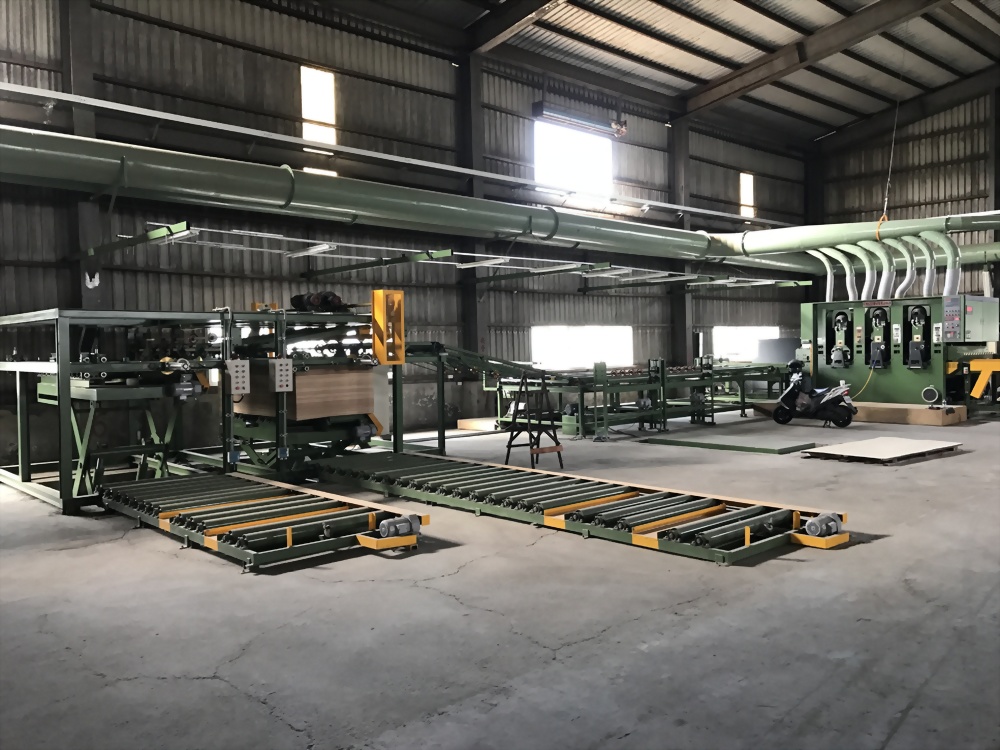

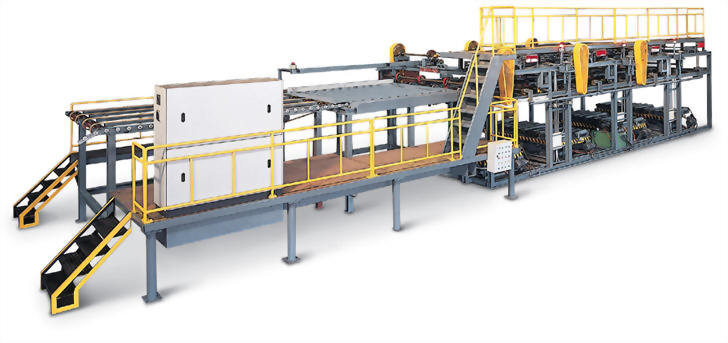

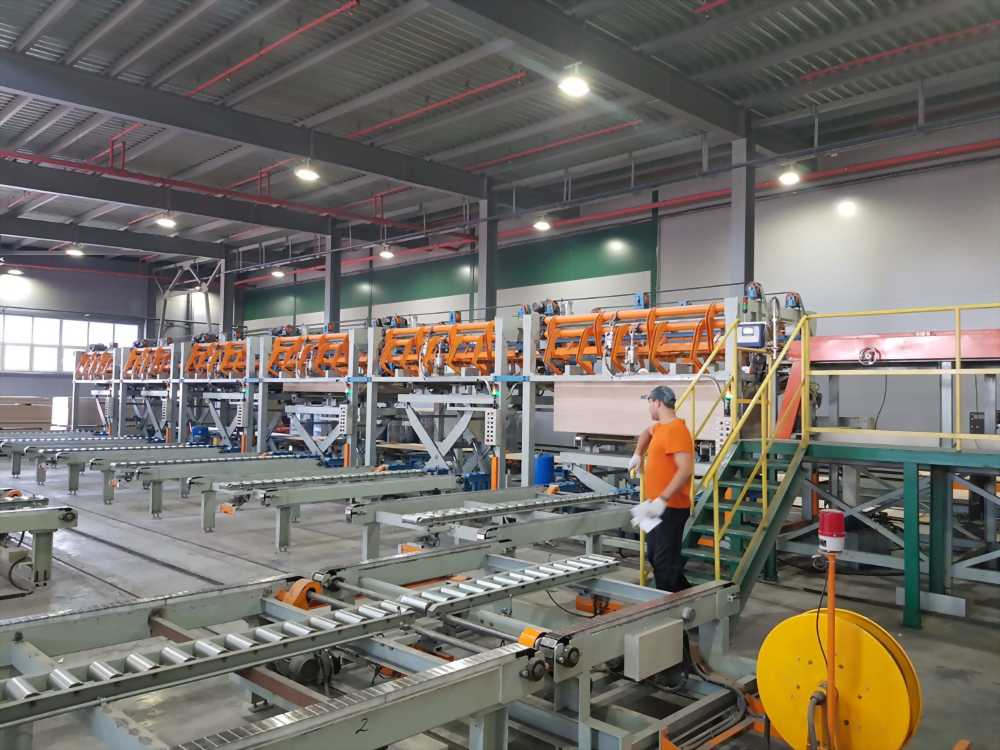

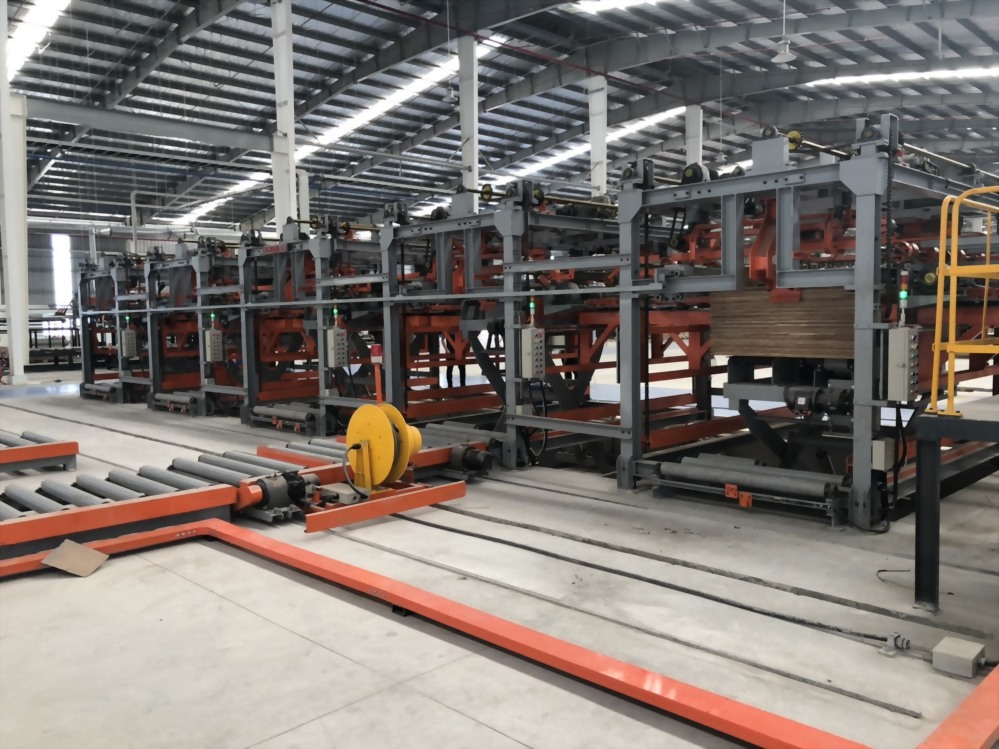

Automatic Stacker
‧ To help solve the high labor cost problem, the automatic stacker is designed for fully automatic operation from infeed to outfeed system. It greatly saves labor cost. One stacker saves 4~5 operators The stacker only need 2 operators, A sorter and an assistant,
‧ Size adjustment is motor driven combined with screw adjustment and special air operated panel pushing device, assuring neat and accurate stacking performance.
‧ Production process and quantity are set on th central control system for convenience and safety.
‧ The outfeed products are delivered through automatic cart to packaging conveyor table for packaging. The automatic product delivery not only saves space while providing neat working space.
‧ There are various model depend on the kinds of panel, factory layout,number of sorting.
|
Specifications |
AS-4x8 |
AS-5x10 |
AS-5x5 |
|
Product size |
3'x6'~4'x8' |
4'x8'~5'x10' |
5'x5' |
|
Loader speed |
1~15 pcs./min. |
1~15 pcs./min. |
1~15 pcs./min. |
|
Classifying stages |
1~8 Boxs |
1~8 Boxs |
1~8 Boxs |
|
STACKING WEIGHT |
1100mm |
1300mm |
1100mm |
|
(1) PANEL ACCUMLATOR ( OPTION) |
|||
